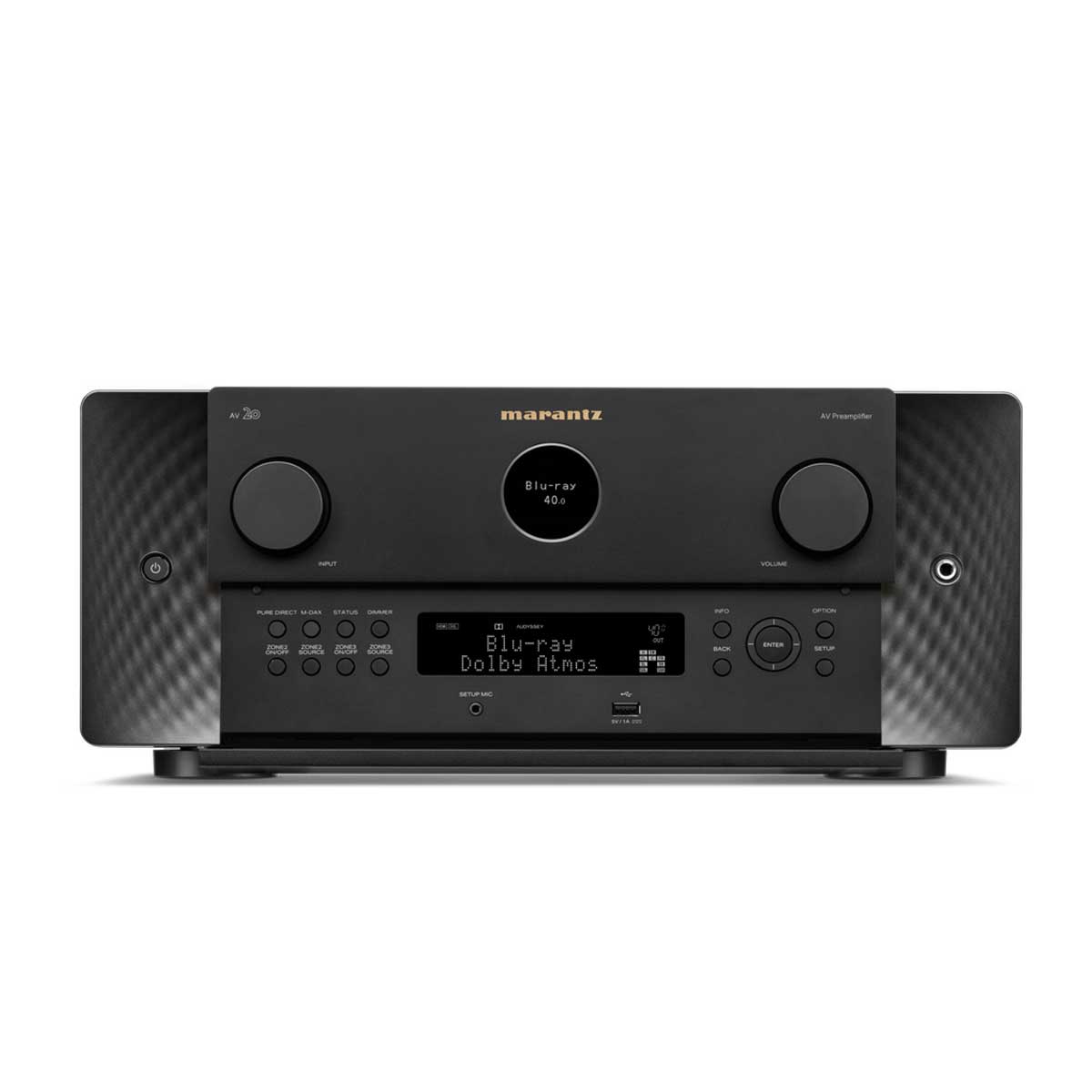

Marantz AV20 Reference 13.4 Channel Balanced AV Preamplifier/Processor
$10,999.00 inc. GST
AV 20 delivers the highest measure of performance and capability for reference-level home theater systems. This 13.4-channel balanced AV preamplifier features Marantz HDAM discrete circuitry, seven 8K UHD–compatible HDMI inputs, Dolby Atmos, DTS:X Pro, AURO-3D, and four independent subwoofer outputs for advanced custom home theater installations.
- Meticulously crafted with authentic materials
- 13.4 Channels
- 7 HDMI Inputs plus eARC
- 8K and Dolby Atmos
- 3D Audio
- HEOS Built-In
Description
Elevated Listening Begins Here
When it comes to home theater, Marantz AV Separates bring your movies to life. AV 20 bears all the cinematic performance and feature-rich innovation we’re renowned for, expertly engineered with a timeless design.
Reference Quality Performance
AV 20 is engineered to create the most memorable home theatre experiences possible.
Sound Master Tuned
Our Marantz Sound Master meticulously tuned AV 20 for amazing performance with careful parts selection to create outstanding sound in your home.
Endlessly Customisable
Comprehensive connectivity options and extensive optimization ability ensures AV 20 will always deliver the perfect results to suit your home theatre.
System Matching
Make sure you get the best possible performance from your AV 20 by combining it with other Marantz products – such as the AMP 20.
For the Soundtrack of Your Life
HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.
Your Whole Home in One Place
HEOS-enabled devices allow you to control multiple rooms, all with the HEOS app.
Hi-Resolution Streaming
Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favourites.
Additional information
| Weight | 15 kg |
|---|
Specifications
Processing Channels: 13.4 (RCA & XLR pre-outs)
Audio Formats: Dolby: Atmos, TrueHD, Surround, Atmos Music, Height Virtualization
DTS: DTS:X, DTS:X Pro, DTS Neural:X, Virtual:X, DTS-HD
Other: IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG-H
Room Calibration: Audyssey MultEQ XT32 (Mic included), Dirac Live upgradable
Premium Audio Components: Copper-plated chassis, toroidal transformer
HDAM-SA3 modules, clock jitter reducer
Gold-plated RCA, Pure Direct mode
Music Support: HEOS built-in, Roon Ready, AirPlay 2, Spotify Connect, TuneIn
Supports DSD 2.8/5.6MHz, FLAC/WAV/ALAC up to 192kHz/24-bit
Gapless playback (FLAC, ALAC, WAV, DSD)
Bluetooth transmit with volume control
HDMI & Video: 7 HDMI in / 3 out (incl. 1 Zone HDMI Out)
8K/60Hz and 4K/120Hz pass-through
HDR10+, Dolby Vision, HLG, Dynamic HDR
HDMI scaling to 8K, GUI overlay, eARC, VRR, ALLM

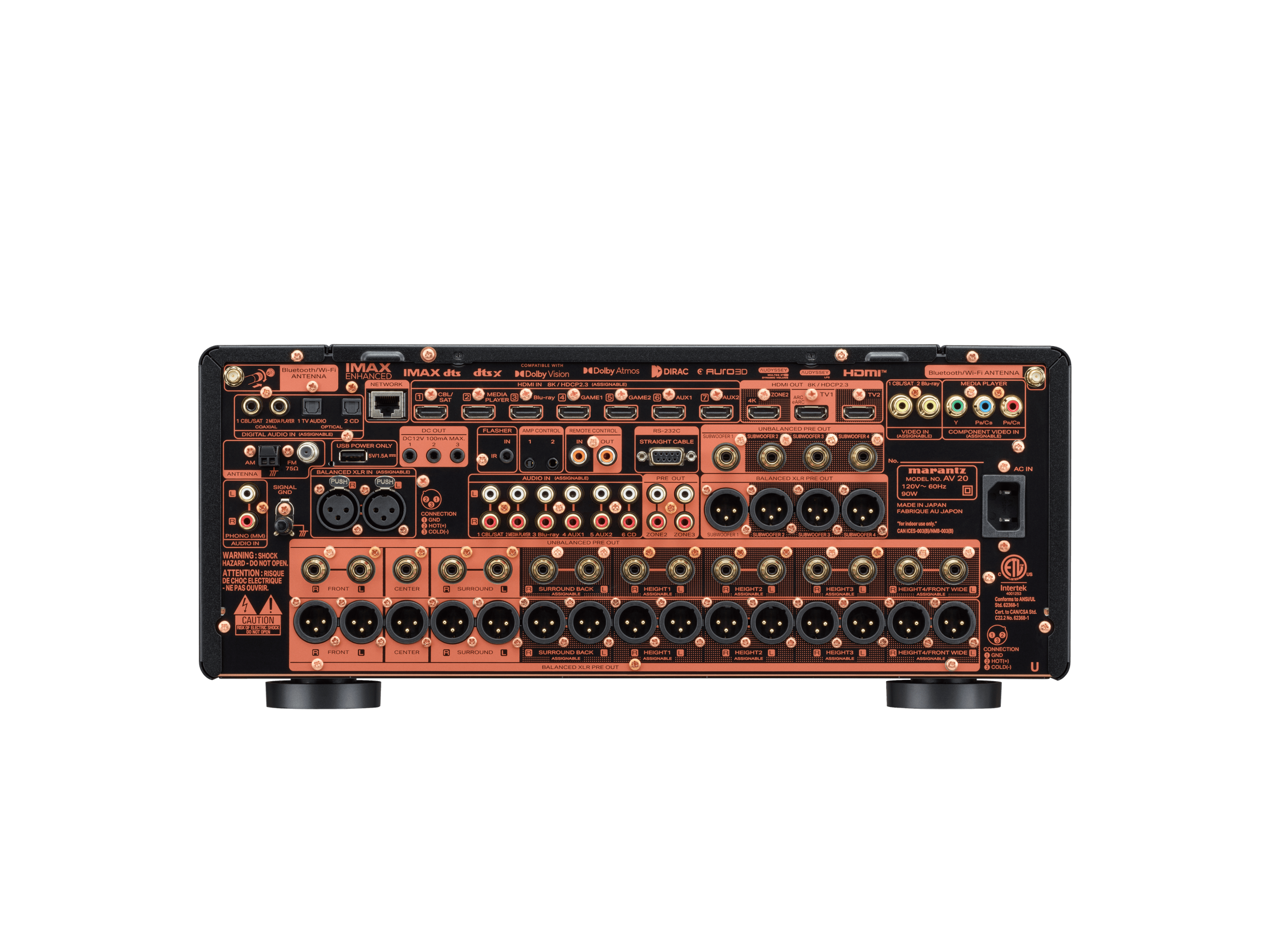

Inputs & Outputs: XLR & RCA pre-outs (15.4), 4x Subwoofer Out (RCA + XLR)
Digital: 2x Optical, 2x Coaxial
Analogue: 6 in (1x XLR), Phono (MM)
USB: 1x front, 1x rear (USB Audio + power)
Zones: 3-zone audio, HDMI Zone output
Independent source via HDMI, digital, USB, analogue
Control & CI Integration: RS232, IP Control, Web Control, IR in/out, 3x 12V Trigger Out
HEOS Link compatible
User Interface: Modern HD GUI, Setup Assistant, Smart Select
2-line FLD + OLED porthole display
Power: 90W / 0.2W standby
Dimensions (W x D x H): 17.4 x 18.0 x 7.5 in. (w/o antenna)
Weight: 33.1 lbs
