McIntosh MHA200 Vacuum Tube Headphone Amplifier

$4,999.00 inc. GST

  • Compact footprint: just 6-1/8″ (15.6cm) x 9-1/8″ (23.2cm)
  • 4 selectable headphone impedance ranges
  • Balanced and unbalanced analog inputs
  • Balanced stereo or dedicated Left & Right outputs

Available on backorder

Description

McIntosh MHA200 Vacuum Tube Headphone Amplifier

Treat Your Headphones to McIntosh Vacuum Tube Amplification.
The MHA200 Vacuum Tube Headphone Amplifier is designed for discerning headphone enthusiasts who demand the most from their headphones. Its versatile set of connectivity options, including balanced inputs and outputs, allows for nearly all headphone types to be connected to enjoy an extraordinary personal listening experience.

McIntosh MHA200 Vacuum Tube Headphone Amplifier

A pair of 12AT7 and 12BH7A dual triode vacuum tubes power the compact MHA200. The 12AT7 vacuum tubes amplify the incoming audio signal while the 12BH7A tubes provide the power to drive the output to your headphones with low distortion. The MHA200 uses a pair of our Unity Coupled Circuit output transformers to deliver pristine audio to your ears. Our Unity Coupled Circuit is the same technology McIntosh was founded on in 1949 and is still used in our vaunted full-size home audio vacuum tube amplifiers such as the timeless MC275 and the more recent MC1502. Indeed, the MHA200 shares many physical design traits with the aforementioned vacuum tube amplifiers.

McIntosh MHA200 Vacuum Tube Headphone Amplifier

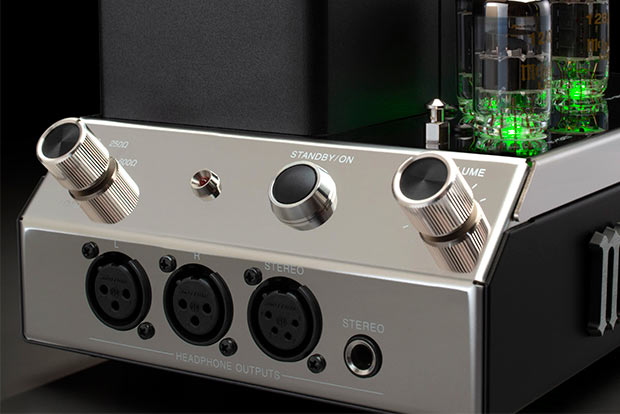

A wide assortment of connectivity options come on the MHA200. For attaching your headphones, there are 3 options: a pair of 3-pin balanced XLR connectors for dedicated Left and Right balanced output; a 4-pin balanced XLR connector for balanced stereo output; and a 1/4″ stereo headphone jack.

McIntosh MHA200 Vacuum Tube Headphone Amplifier

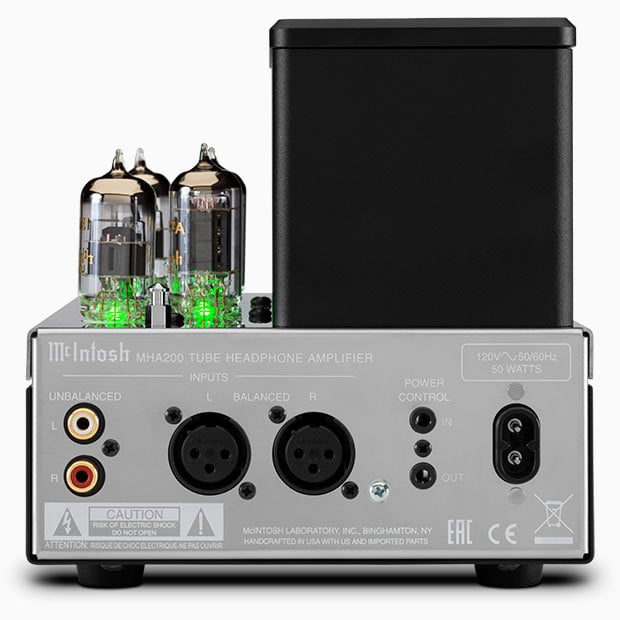

For connecting the MHA200 to your home music system’s source components, it has 1 set each of both balanced and unbalanced inputs. Thanks to the MHA200’s small size of just 6-1/8″ (15.6cm) wide x 9-1/8″ (23.2cm) deep and its balanced inputs, it can be placed close to your listening position for ease use, with long balanced audio cables connecting it to your audio system without fear of signal loss.

McIntosh MHA200 Vacuum Tube Headphone Amplifier
Headphones not included.

The MHA200 takes advantage of unique McIntosh technologies to create the best possible personal listening experience. The Unity Coupled Circuit transformers have been adapted to produce 4 headphone impedance ranges of 32 – 100, 100 – 250, 250 – 600, and 600 – 1,000 Ohms at 500mW so that virtually every headphone can receive legendary McIntosh sound quality and performance.

McIntosh MHA200 Vacuum Tube Headphone Amplifier

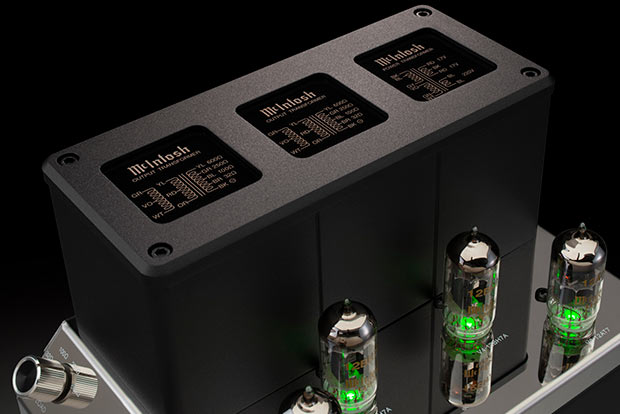

We custom designed and manufactured the output transformers to match the tube amplifier section to the headphone output section in order to ensure maximum power transfer for various headphone loads. Instead of having to adapt to the impedance of the headphones with voltage gain in the input stage, the Unity Coupled Circuit output transformers’ secondary windings ensure the full power of the MHA200 is available regardless of the impedance of your headphones. A custom, high-performance, and highly efficient toroidal power transformer with low mechanical hum and a low magnetic field, which helps reduce electrical noise, provides clean power to the amplifier.

McIntosh MHA200 Vacuum Tube Headphone Amplifier

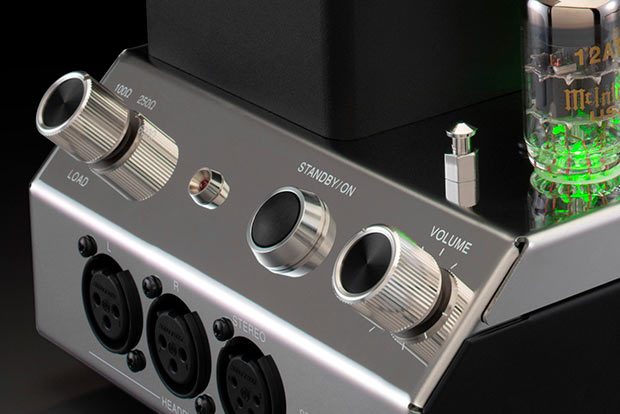

You can select the best impedance range for your headphones via the LOAD knob. The VOLUME knob allows the MHA200 to be connected directly to music sources that only have a fixed volume output without needing a preamplifier for volume control. Conversely, if you’re using a component with variable volume output, then the VOLUME knob should be set to the center Unity Gain point and the volume controlled by the variable output component.

McIntosh MHA200 Vacuum Tube Headphone Amplifier

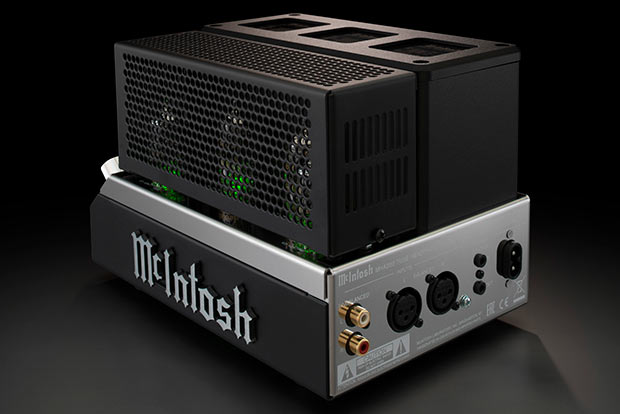

The MHA200 features a custom formed stainless steel chassis with a polished mirror finish that will accentuate the glow of the vacuum tubes, making it a statement piece to display in your home and to use with pride. A vintage die cast aluminum McIntosh name badge adorns the side of the MHA200. A Power Control input and output allows the MHA200 to turn on and off with other connected McIntosh components, such as preamplifiersCD playersturntables, or media steamers. A protective vacuum tube cover is included. Contact your local dealer to learn more.

Specifications

Headphone Power Output:
500mW
Headphone Output Impedance:
32-100 Ohms
100-250 Ohms
250-600 Ohms
600-1,000 Ohms

Total Harmonic Distortion:
0.5%
Intermodulation Distortion:
0.04% Typical
0.4% Maximum
Dynamic Headroom:
1.5dB
Frequency Response:
+0, -0.5dB from 20Hz to 20,000Hz
Sensitivity (Unbalanced):
1.0 Vrms
Sensitivity (Balanced):
2.0 Vrms
Maximum Input Signal (Unbalanced):
8V
Maximum Input Signal (Balanced):
16V
Signal To Noise Ratio:
94dB
Input Impedance (Balanced / Unbalanced):
20K/10K
Damping Factor:
>150
Preamplifier Output:
N/A
Preamplifier Output Impedance:
N/A
Voltage Gain:
12dB at 32 Ohms
17dB at 100 Ohms
21dB at 250 Ohms
25dB at 600 Ohms
Power Guard:
No
Headphone Output:
One pair of 3-pin balanced XLR connectors for dedicated Left and Right balanced output;
One 4-pin balanced XLR connector for balanced stereo output;
One 1/4″ stereo headphone jack
Balanced Input:
1
Unbalanced Input:
1
Output Meters:
No
Vacuum Tube or Solid State:
Vacuum Tube
Power Requirement
120V 50/60Hz, 1.5A
Standby Power Requirement
<0.5 Watts Output Type: Unity Coupled Output Transformer Dimensions (W x H x D): 6-1/8" (15.6cm) x 5-3/4" (14.6cm) x 9-1/8" (23.2cm) Weight: 10.5 lbs (4.8 kg) Shipping Weight: 12 lbs (5.5 kg)
