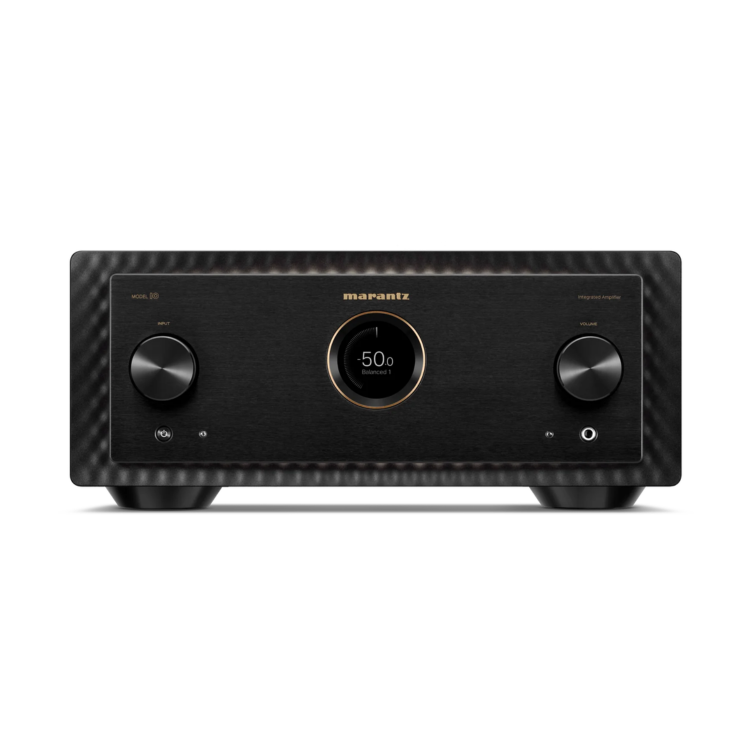

Marantz Model 10 Reference Integrated Stereo Amplifier

Marantz Model 10 Reference Integrated Stereo Amplifier

$28,999.00 inc. GST

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

  • 2 Channels
  • 250 Watts per Channel
  • All-New Marantz SMPS
  • Fully balanced dual mono amplifiers
  • Phono MM/MC
  • Copper-plated chassis
Category: Tags: , , , , , , Brand:

Description

Inspired by our past, engineered for our future

MODEL 10 is the new reference in amplifier design and the most powerful and finest sounding integrated amplifier Marantz has ever made.
From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.
Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a HD TFT Color Display for volume and input selection, along with a digital level meter that behaves like vintage analog meters.
MODEL 10 was conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.

Specifications

Rated Output Power: 250W + 250W (8ohm, 20Hz-20kHz, THD 0.05 %),
500W + 500W (4ohm, 20Hz-20kHz, THD 0.05 %)
Speaker Impedance: 4~16ohm
Frequency Response: 5Hz~60kHz +0dB/-3dB, 20Hz~20kHz +0dB/-0.3dB
Total Harmonic distortion: 0.005%, (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD)
Damping Factor: 500 (8ohm, 20Hz-20kHz)
Input Sensitivity: Phono input
MM: 3.6 mV / 36 kohm
MC (Low): 400 μV / 33 ohm
MC (Mid): 400 μV / 100 ohm
MC (High): 400 μV / 390 ohm
RIAA Deviation: 20 Hz – 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
MM : 80mV
MC : 8mV
Input Sensitivity: CD/LINE/RECORDER
350 mV/41kohm (Unbalanced)
700 mV/36kohm
Input Sensitivity: Power Amp input
Unbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB)
SN Ratio
PHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB
Headphone Output Level
130mW / 32 ohms
Tone Control
BASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB
Power Consumption: 270W, 0.1W (at Standby)
Phono Input: Yes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 μV / 33Ω
PHONO (MC Mid): 400 μV / 100Ω
PHONO (MC High): 400 μV / 390Ω
PHONO (MM): 3.6 mV / 39kΩ

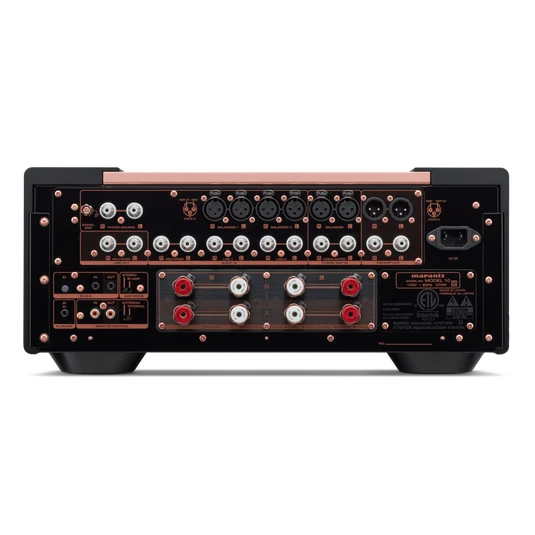

Analog Input (include Phono) / REC Out (RCA)
4 /1
(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
(RECORDER: Thick nickel plated independent terminals)
Balanced XLR input: 2
Power Amp Direct: Yes [RCA (Thick nickel plated independent terminals) / XLR] Pre out: Yes [RCA (Thick nickel plated independent terminals) / XLR] 2 sets of Speaker Output: Yes (Bi-wiring)
Speaker Terminal: Marantz Original SPKT-100+ 2 (High quality and high-purity copper plated)
Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)

Unit (W × H × D): 440 × 192 × 473mm
Cabinet Size (W × H × D): 440 × 192 × 422mm
Net weight: 33.7kg
Packaging Dimensions (W × H × D): 600 × 379 × 540mm
Packaging gross weight: 39.0kg
